10HP 460V Rotary Screw Air Compressor w/ Air Dryer 80 GAL Air Tank 125Psi 3 Ph

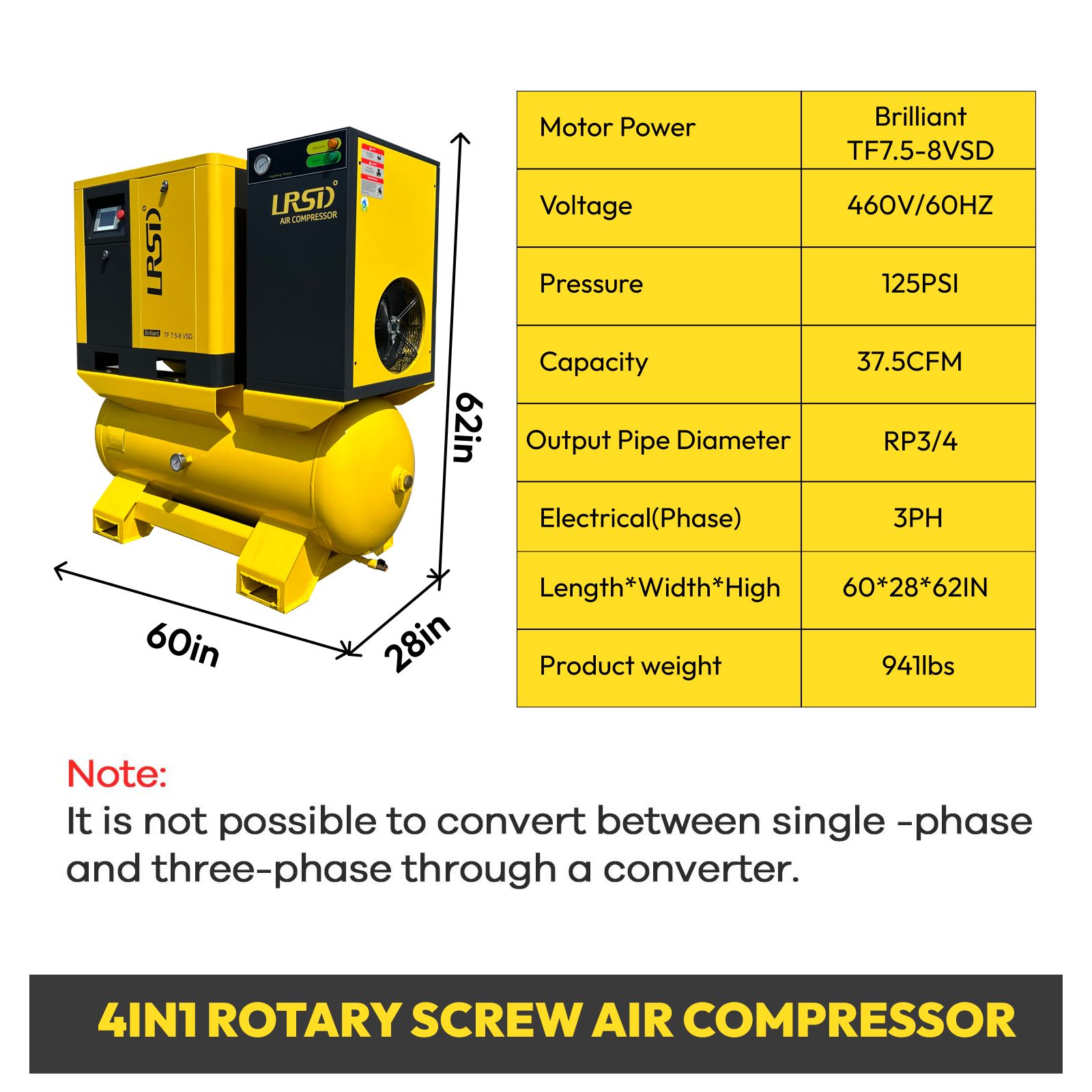

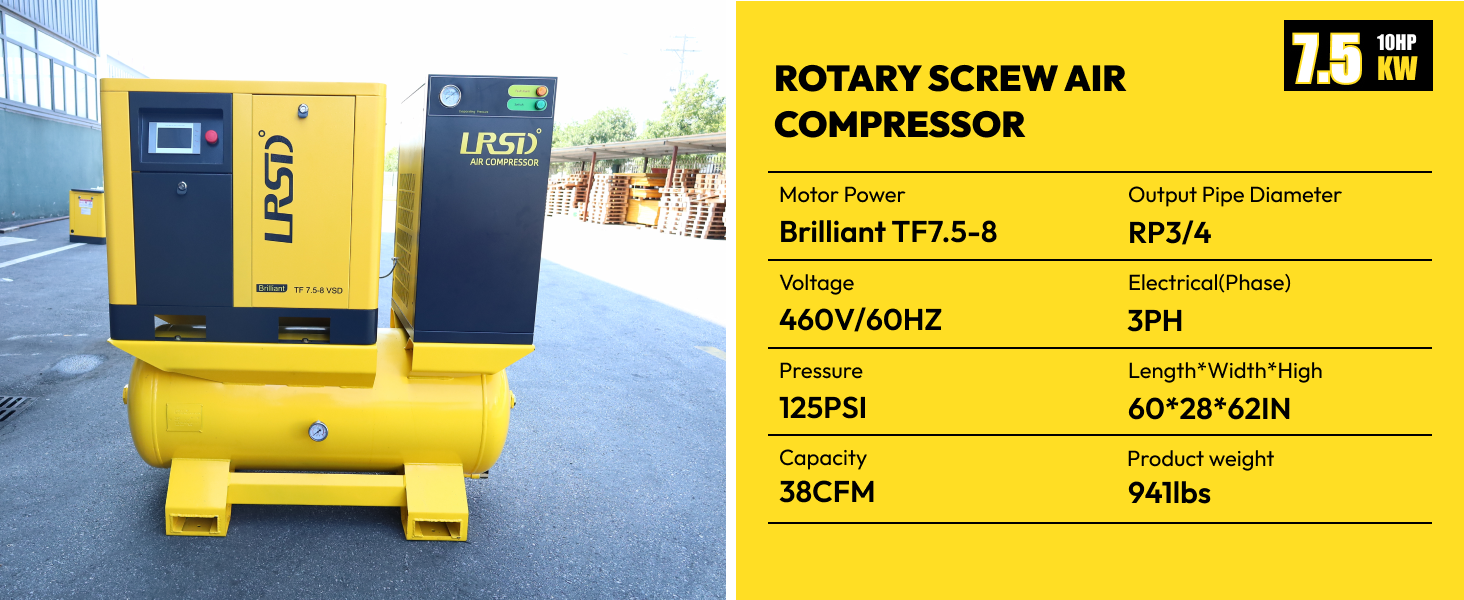

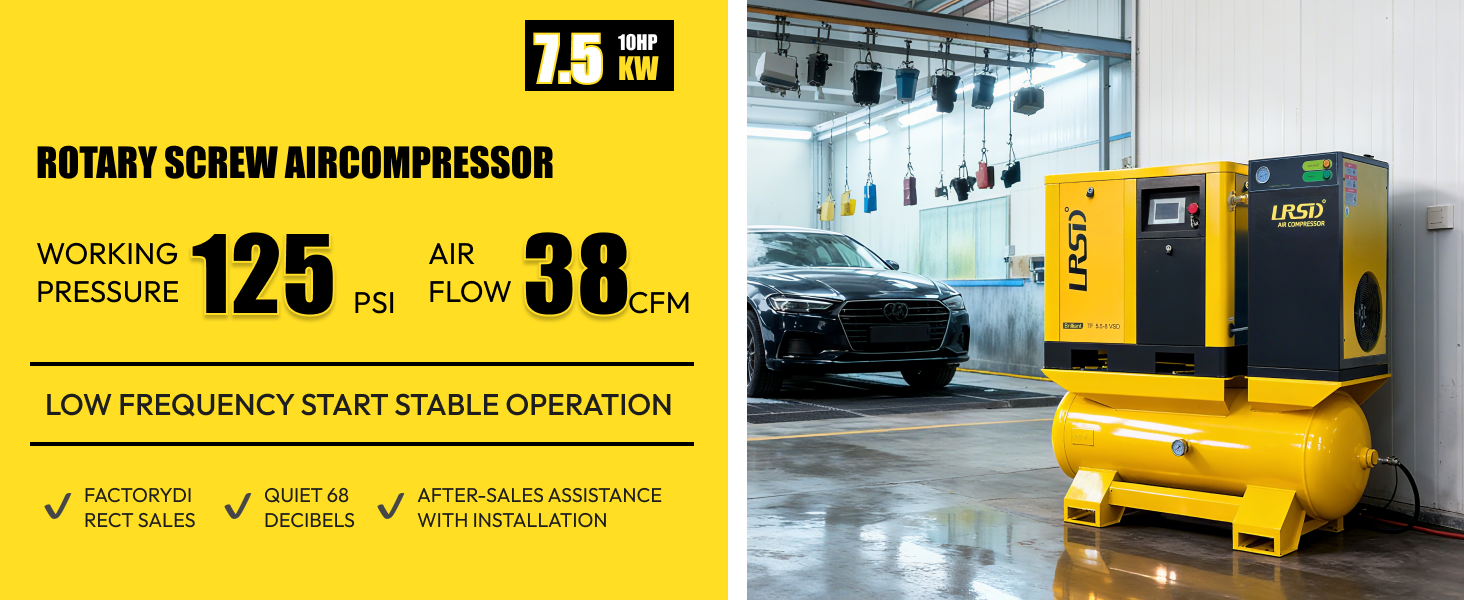

Product Parameters:

Power ：10 hp（7.5KW）
Exhaust pressure : 125psi

Exhaust volume : 38CFM

Noise level : 68 dB (A)

Output Pipe Diameter : RP 3/4"

Voltage :460V/ 60Hz

Phase - Electrical ：3 phase

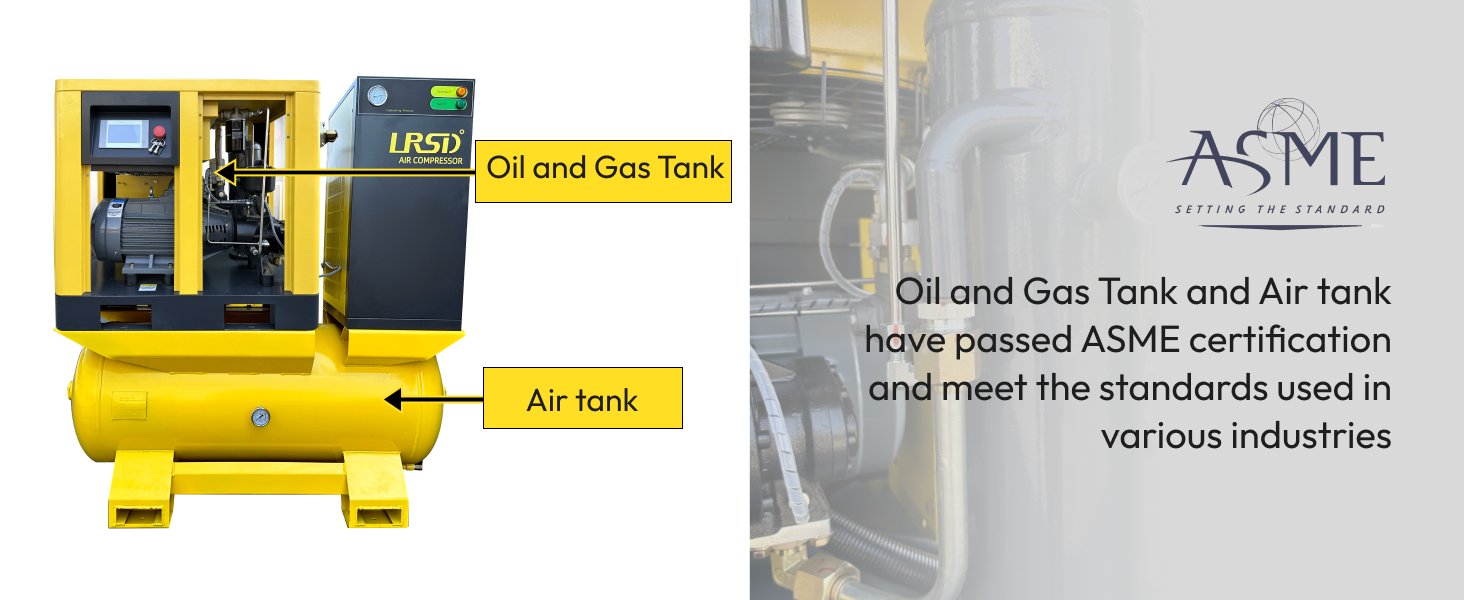

ASME Air Tank: 80Gal

Inquire Now

Product Details

Technical Parmeters

Catalogue Download

10HP 230V Rotary Screw Air Compressor w/ Air Dryer 80 GAL Air Tank 125Psi 3 Ph

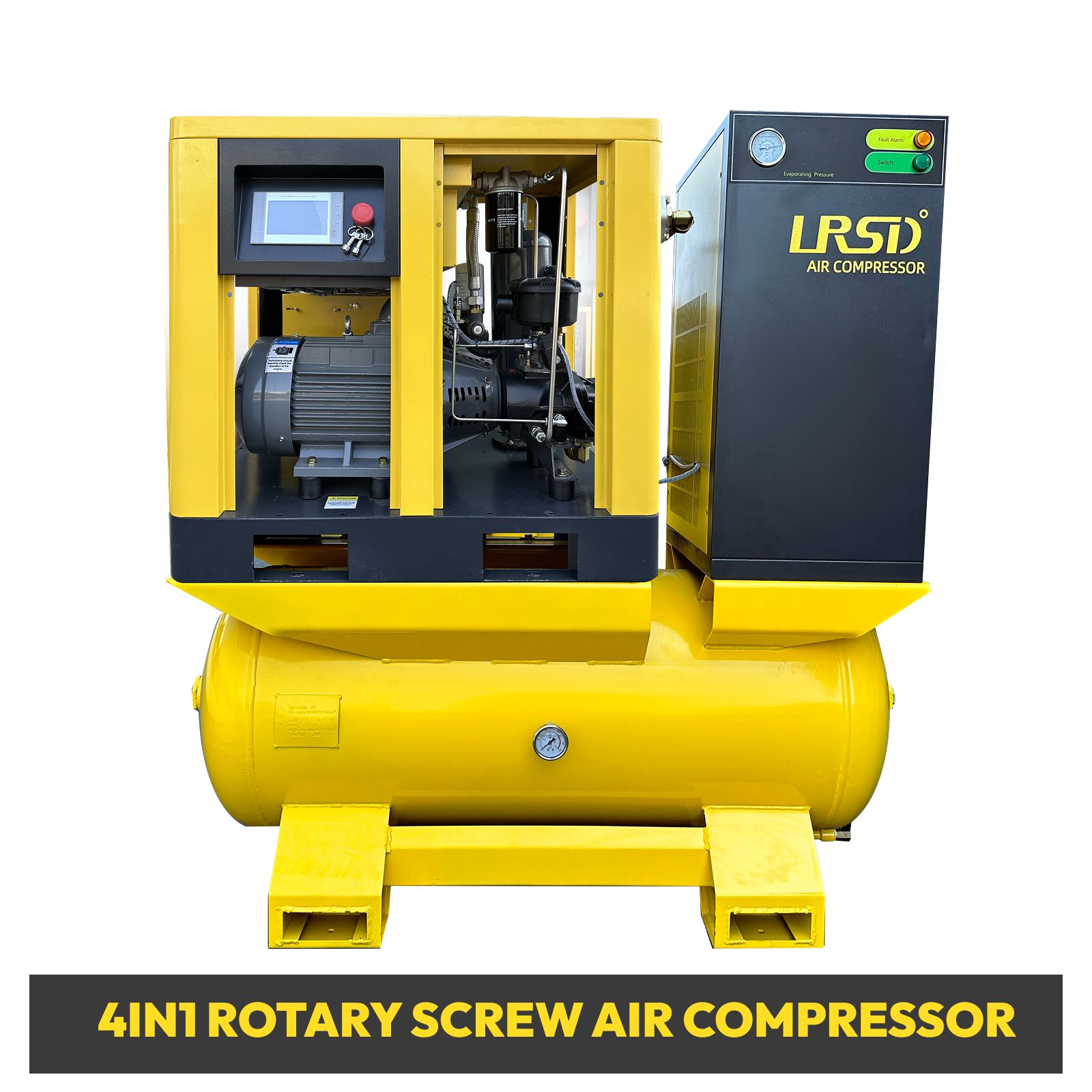

This high-quality rotary screw air compressor from LRSD is a powerful and reliable machine that is capable

of delivering consistent and efficient performance for a wide range of industrial applications.

It is rated at 10 HP (7.5 kW) and a 3 phase power.

this compressor is able to produce an impressive 38 CFM of compressed air at a rated voltage of 208 V-240 V.

Designed for use in businesses and industrial settings,

this air compressor is perfect for powering pneumatic tools, pumps, and other equipment.

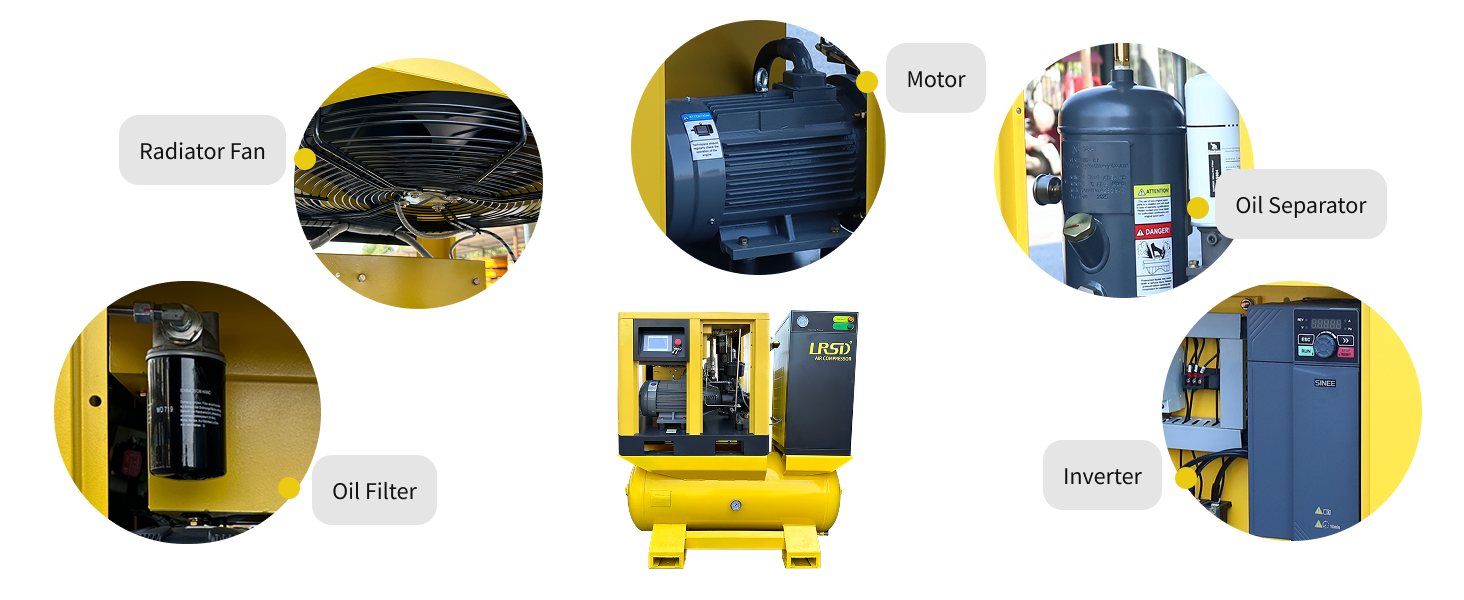

The motor uses a high-efficiency motor with an IP55 protection level to effectively prevent dust and moisture from entering the motor. SKF bearings ensure long-term continuous trouble-free operation,

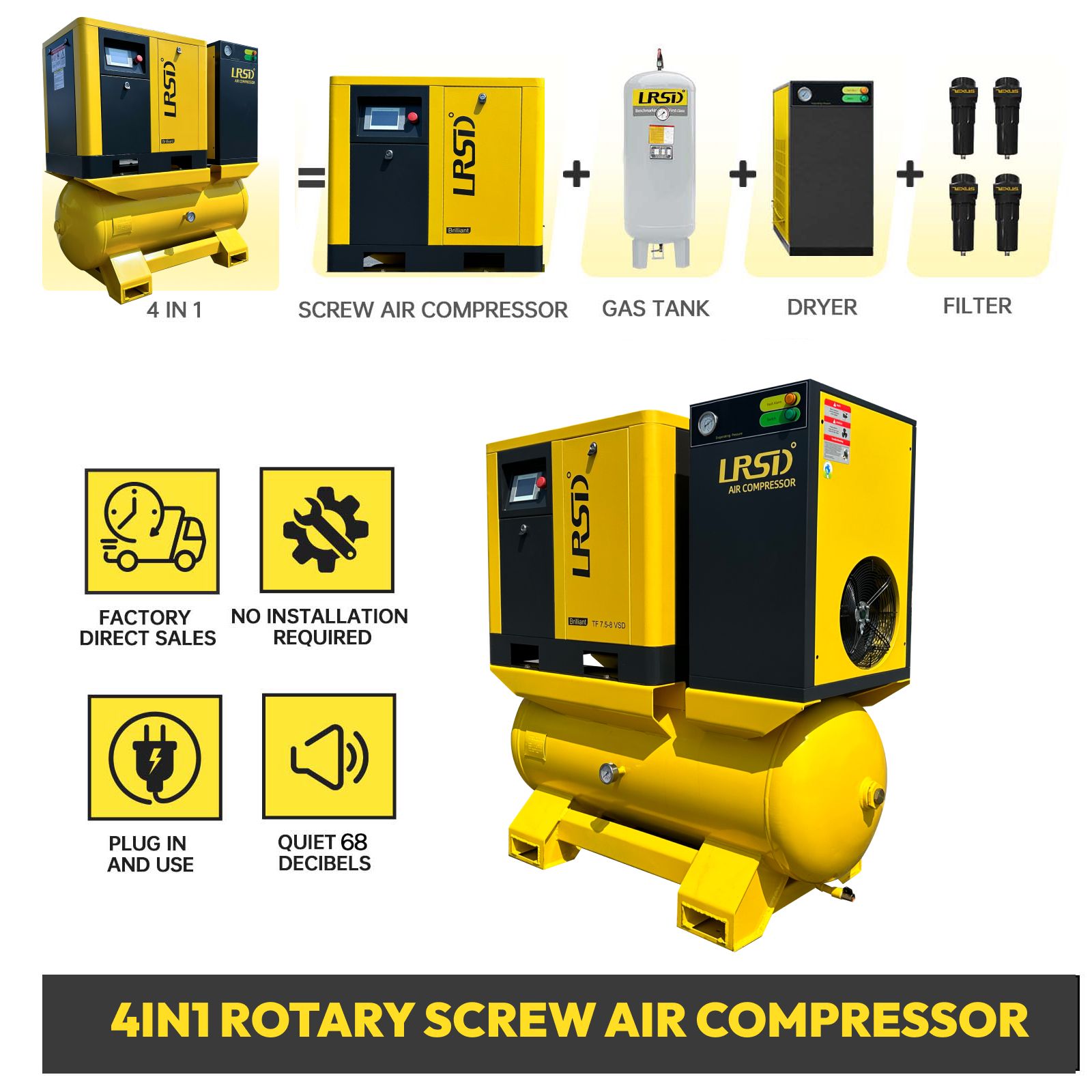

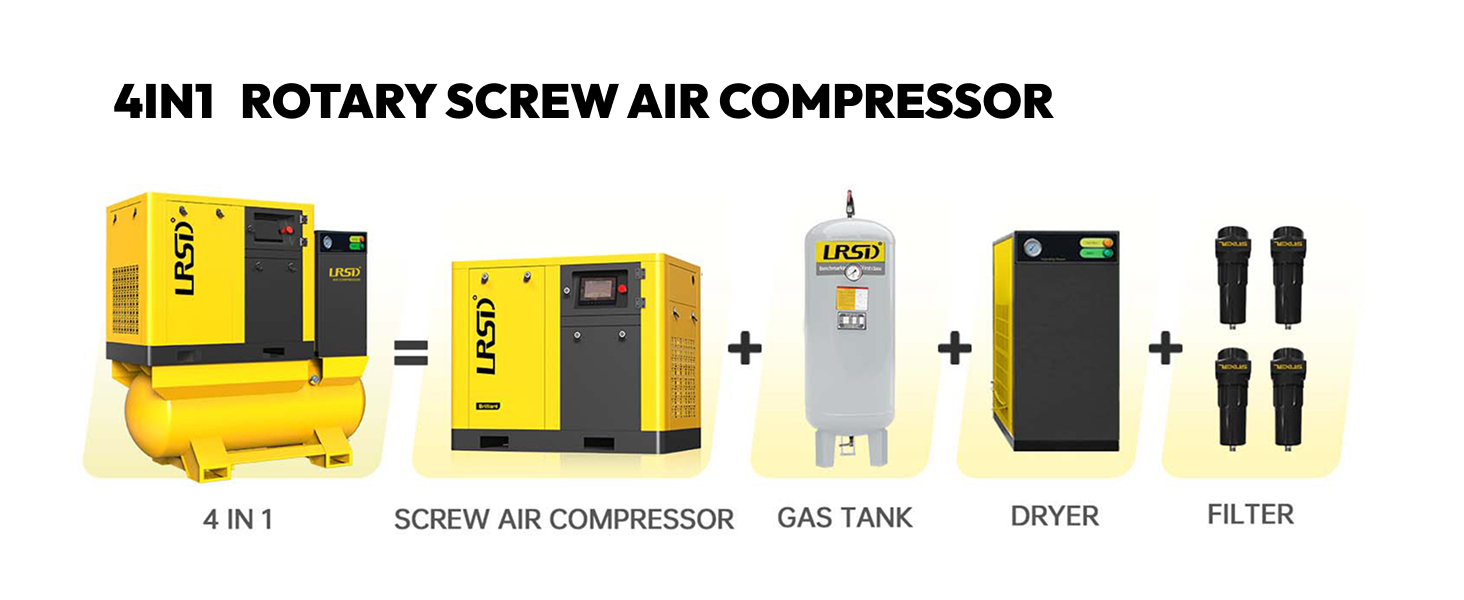

The TF line of LRSD all in one series air compressors , Integrated and easy to install,Save the trouble of customers preparing gas tanks, cold dryers, and filters; save the trouble of taking over and installing

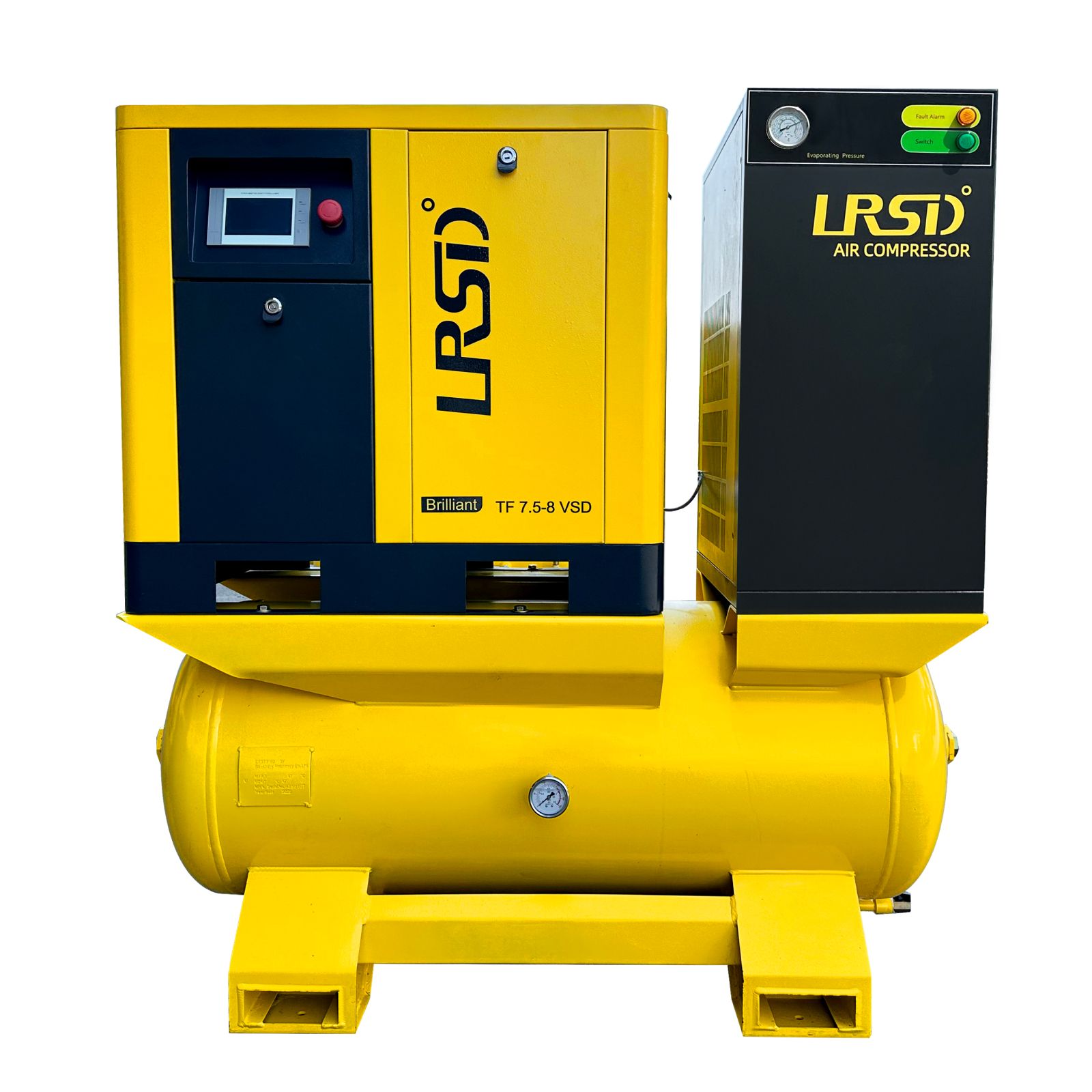

The compressor includes a 1 year warranty and comes with the instruction manual. LRSD Model TF7.5-8 VSD

Great Deal on Ebay . . . $ave Now

The shipping weight 1100 lbs and the shipping dimensions are 70" L x 38" W x 72" H.

24-hour quick response, delivery within 3 days

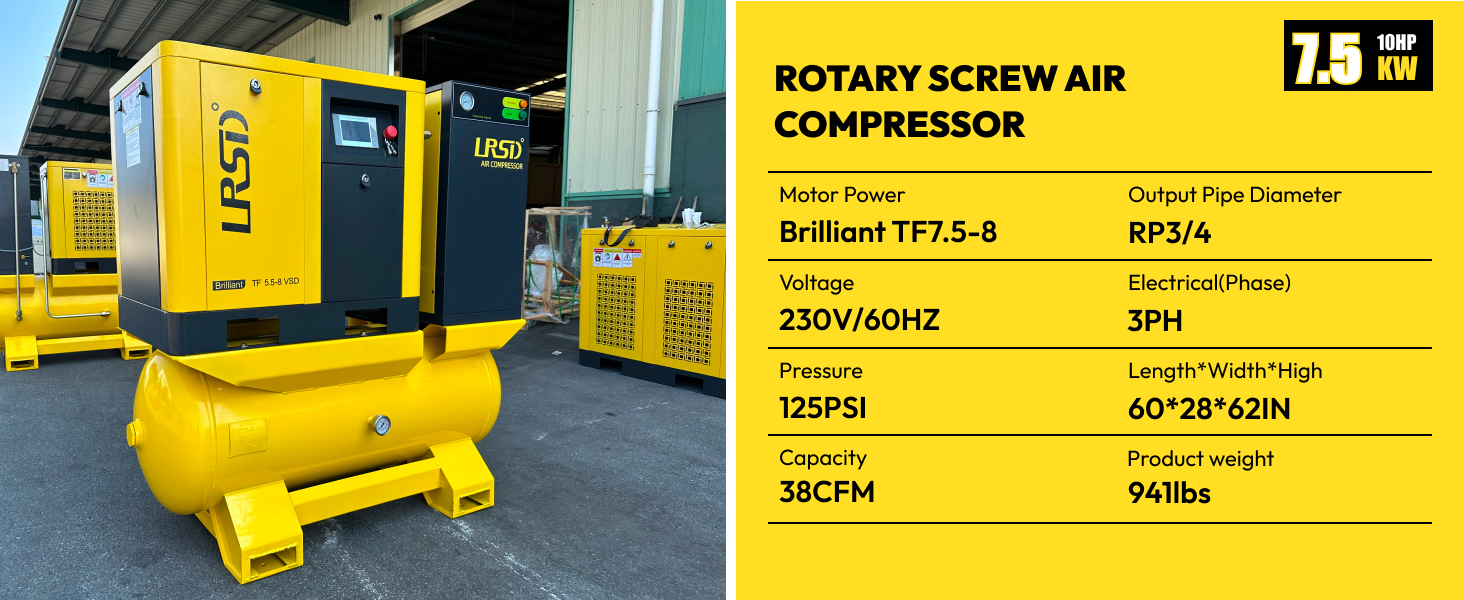

Product Parameters:

Power ：10 hp（7.5KW）
Exhaust pressure : 125psi

Exhaust volume : 38CFM

Noise level : 68 dB (A)

Output Pipe Diameter : RP 3/4"

Voltage :230V/ 60Hz

Phase - Electrical ：3 phase

ASME Air Tank: 80Gal

10HP 230V Rotary Screw Air Compressor w/ Air Dryer 80 GAL Air Tank 125Psi 3 Ph

Application range:

It is a 3 phase quiet rotary screw air compressor engineered for high performance, efficiency and reliability. Featuring a 10 hp motor , the air compressor is the perfect application for tire shops, maintenance, paint and autobody shops looking to have a consistent air flow. Offering noise levels well below that of their piston-based counterparts, this little workhorse has the power and punch to offer air flow on a consistent basis ,It can also be used in small processing plants, general machinery, printing industry, CNC processing electronics and other industries

TF Series.4 in 1 Screw Air Compressor/8-10BAR

Model	Nominal Power		Working Pressure		Free Air Delivery		Weight	Noise Level	Dimensions (LxWxH)			Outlet size
50Hz	KW	HP	bar	psi	m3/min	cfm	LB	db(A)	（IN）
TF3-8	3	4	8	116	0.45	15.89	705.5	65	57.1	27.6	61.4	RP3/4
TF3-10	3	4	10	145	0.39	13.77	705.5	65	57.1	27.6	61.4	RP3/4
TF4-8	4	5.5	8	116	0.61	21.54	727.5	65	57.1	27.6	61.4	RP3/4
TF4-10	4	5.5	10	145	0.51	18.01	727.5	65	57.1	27.6	61.4	RP3/4
TF5.5-8	5.5	7.5	8	116	0.82	28.96	815.7	65	57.1	27.6	61.4	RP3/4
TF5.5-10	5.5	7.5	10	145	0.71	25.07	815.7	65	57.1	27.6	61.4	RP3/4
TF7.5-8	7.5	10	8	116	1.1	38.85	859.8	68	57.1	27.6	61.4	RP3/4
TF7.5-10	7.5	10	10	145	1.01	35.67	859.8	68	57.1	27.6	61.4	RP3/4
TF11-8	11	15	8	116	1.87	66.04	1212.5	68	74.4	31.5	67.3	RP3/4
TF11-10	11	15	10	145	1.85	65.33	1212.5	68	74.4	31.5	67.3	RP3/4
TF11-16	11	15	16	232	1.01	35.67	1190.5	68	74.4	31.5	67.3	RP3/4
TF15-8	15	20	8	116	2.27	80.16	1300.7	68	74.4	31.5	67.3	RP3/4
TF15-10	15	20	10	145	2.21	78.05	1300.7	68	74.4	31.5	67.3	RP3/4
TF15-16	15	20	16	232	1.54	54.38	1256.6	70	74.4	31.5	67.3	RP3/4
TF18.5-8	18.5	25	8	116	2.83	99.94	1433.0	70	87.8	39	73.2	RP1
TF18.5-10	18.5	25	10	145	2.80	98.88	1433.0	70	87.8	39	73.2	RP1
TF18.5-16	18.5	25	16	232	1.87	66.04	1366.9	70	87.8	39	73.2	RP1
TF22-8	22	30	8	116	3.48	122.90	1521.2	70	87.8	39	73.2	RP1
TF22-10	22	30	10	145	3.45	121.84	1521.2	70	87.8	39	73.2	RP1
TF22-16	22	30	16	232	2.79	98.83	1433.0	70	87.8	39	73.2	RP1
TF30-8	30	40	8	116	4.21	148.67	1873.9	72	87.8	39.0	73.2	RP1
TF30-10	30	40	10	145	4.17	147.26	1840.9	72	87.8	39.0	73.2	RP1
TF30-16	30	40	16	232	3.28	115.83	1477.1	72	87.8	39.0	73.2	RP1
TF37-8	37	50	8	116	5.85	206.59	2160.5	72	92.5	45.3	75.6	RP1-1/2
TF37-10	37	50	10	145	5.80	204.83	2120.8	72	92.5	45.3	75.6	RP1-1/2
TF37-16	37	50	16	232	3.97	140.20	1653.5	72	92.5	45.3	75.6	RP1-1/2

AIR COMPRESSOR MAINTENANCE

The air compressor shouldbe placed in a place withclean air and good ventilation.

The air compressor should be placedhorizontally, with the belt side facingthe wall, and the maintenancespaceshould be reserved.

Before repairing and disassemblingthe air compressor, please tum offthe power supply and dischargethe air in the air seam.

When wiring, check whether thefan rotation direction is consistentwith the arrow direction.

ENERGY SAVING THCHNOLOGY

Power saving of 17000o kWh per month

The starting power of the original system is 555kw,and the starting power of the new system is 320kw.

Power saving of 17000o kWh per month

Power saving of 54000 kWh per month

The starting power of the original system is 240kW,and the starting power of the new system is 132kw.

Power saving of 54000 kWh per month

Power saving of 86000 kWh per month

The starting power of the original system is 446kW,and the starting power of the new system is 325kW.

Power saving of 86000 kWh per month

Power saving of 260000 kWh per month

The starting power of the original system is 690kw,and the starting power of the new system is 420kw.

Power saving of 260000 kWh per month

Power saving of 167000 kWh per month

The starting power of the original system is 732kW,and the starting power of the new system is 50okw.

Power saving of 167000 kWh per month

Power saving of 79000 kWh per month

The starting power of the original system is 430kw,and the starting power of the new system is 320kw.

Power saving of 79000 kWh per month
