Four-in-One Screw Air Compressor: The Ultimate Air Source Solution for Laser Cutting Industry Efficiency

Dec. 05, 2025

Four-in-One Screw Air Compressor: The Ultimate Air Source Solution for Laser Cutting Industry Efficiency

Meta Description: Discover how four-in-one screw air compressors solve laser cutting air source pain points—stable pressure, clean air, energy savings, and space efficiency. Ideal for stainless steel, aluminum alloy laser cutting.

Keywords: four-in-one screw air compressor, laser cutting air source, laser cutting compressor, energy-efficient air compressor for laser cutting, clean air solution for laser cutting

In the laser cutting industry, where precision and productivity directly impact profitability, high-quality compressed air is non-negotiable. It powers nozzle cooling, slag removal, and lens protection—yet traditional split-type air systems (compressor + dryer + filter + air tank) often fail to meet laser cutting’s strict demands. They waste space, cause air pressure fluctuations, and leave residues that ruin cut quality.

The four-in-one screw air compressor changes this. By integrating compression, drying, filtration, and air storage into a single unit, it delivers the consistent, clean air laser cutting machines need—while slashing costs and optimizing workshop layout. Below’s how it transforms laser cutting operations.

Four-in-One Screw Air Compressor: The Ultimate Air Source Solution for Laser Cutting Industry Efficiency

1. Why Laser Cutting Demands Specialized Air Sources

Laser cutting’s precision (down to 0.1mm kerf widths) and material diversity (stainless steel, aluminum, carbon steel) require air sources that meet three non-negotiable standards:

1.1 Ultra-Clean Air to Avoid Defects

Moisture causes sheet metal rust and cut oxidation; oil contaminates laser lenses (reducing beam intensity); dust clogs nozzles (leading to uneven cuts). Laser cutting requires:

Dew point ≤ -20℃ (≤ -40℃ for easily oxidized metals like aluminum)

Oil content ≤ 0.01mg/m³

Filtration precision ≤ 1μm

1.2 Stable Pressure & Flow for Consistent Cuts

Pressure: 0.6–1.2MPa (varies by material thickness; e.g., 12mm stainless steel needs 1.0MPa)

Pressure fluctuation ≤ ±0.05MPa (otherwise, kerfs widen/narrow randomly)

Flow rate: 3–6 m³/min for 1000W lasers; 8–12 m³/min for 3000W+ lasers (no interruptions during long runs)

1.3 Space-Saving & Low-Noise Design

Laser cutting workshops are often packed with machines (laser cutters, loaders, conveyors). Auxiliary equipment must:

Occupy minimal floor space

Operate at ≤ 75dB (to comply with workplace noise regulations)

2. 5 Key Advantages of Four-in-One Screw Air Compressors for Laser Cutting

The four-in-one screw air compressor is engineered to solve the above pain points. Here’s how it outperforms traditional split systems:

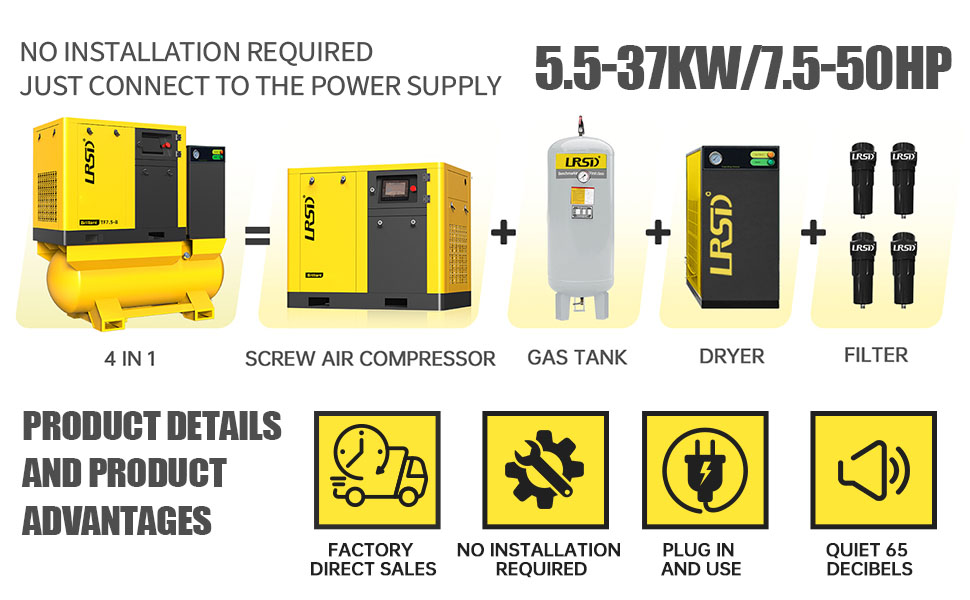

2.1 Integrated Design Saves 50%+ Space

No more separate compressors, dryers, filters, or tanks—all components are built into one unit. Its footprint is just 1/3–1/2 of split systems, freeing up space for additional laser cutters or storage.

Plus, integrated piping reduces connection points, cutting air pressure loss to ≤ 0.03MPa (split systems lose 0.08–0.12MPa via long hoses)—no more wasted energy or weak airflow.

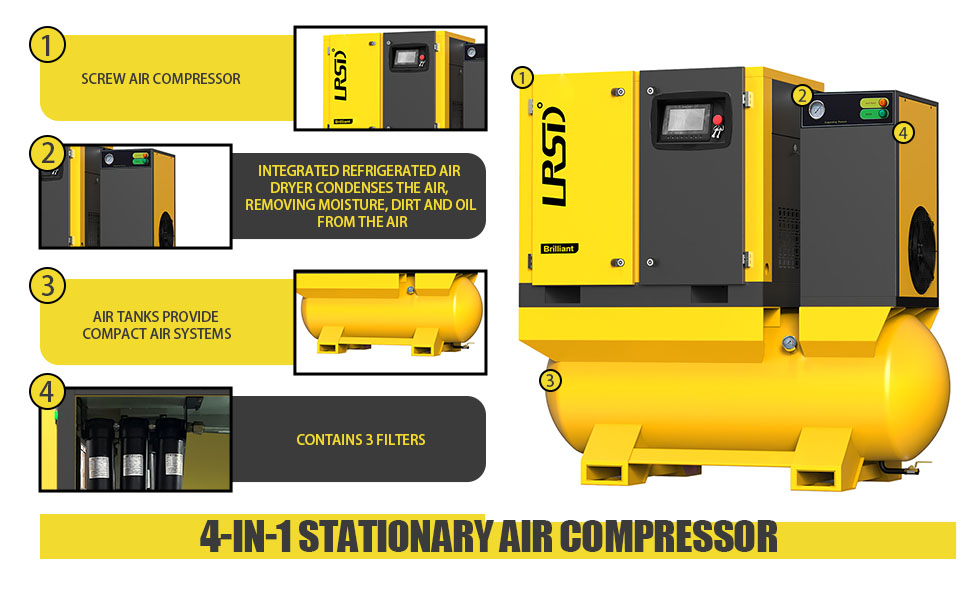

2.2 Multi-Stage Filtration Delivers Lab-Grade Clean Air

Every four-in-one unit includes:

Pre-filter: Removes large dust particles (≥ 5μm)

Fine filter: Traps micro-dust (≤ 1μm) and oil droplets

Activated carbon filter: Eliminates residual oil vapor

Refrigerated/adsorption dryer: Stabilizes dew point at -25℃ (upgradeable to -40℃ for aluminum cutting)

This ensures zero moisture, oil, or dust—critical for high-precision jobs like medical device parts or automotive components.

2.3 Variable Frequency Control (VFC) for Stable Pressure & Energy Savings

Equipped with VFC technology, the compressor adjusts its speed based on real-time air demand:

Pressure fluctuation ≤ ±0.03MPa (far better than industry standards)

Built-in 100–200L air tank buffers pressure spikes/drops

Energy savings: 20%–40% vs. fixed-frequency compressors (cuts electricity costs by $1,500+/month for 3-machine workshops)

2.4 Low Maintenance & Long Lifespan

Split systems require separate maintenance for each component (e.g., changing dryer filters monthly, servicing compressors quarterly). The four-in-one unit:

Needs only 1 maintenance check every 3 months

Uses high-quality screw rotors (service life ≥ 8,000 hours)

Reduces spare parts costs by 60% (no need to stock dryer/filter parts separately)

2.5 Low-Noise Operation Improves Workplace Comfort

With a silent enclosure and vibration-damping feet, operating noise is 70–75dB—quieter than a office printer. This eliminates the need for soundproofing (a $5,000+ expense for split systems) and keeps workers comfortable.

3. Real-World Result: 25% Higher Efficiency for a Sheet Metal Factory

A leading Chinese sheet metal manufacturer (serving automotive and HVAC clients) replaced 3 split systems with 30kW four-in-one screw air compressors, pairing them with 8×1500W laser cutters. Here’s what happened:

Cut quality: Pass rate jumped from 92% to 98% (no more oxidation or burrs on stainless steel)

Cost savings: Monthly electricity bills down by ¥12,000 ($1,650); maintenance costs cut by 50%

Space gain: 40㎡ freed up (added 1 more laser cutter)

Uptime: 99.5% (vs. 95% with split systems, which often broke down)

4. How to Choose the Right Four-in-One Screw Air Compressor for Your Laser Cutting Shop

Follow these 4 steps to select the perfect unit:

Step 1: Match Flow Rate to Laser Power

Laser Power
Recommended Flow Rate
1000–2000W
5–8 m³/min
3000–5000W
8–12 m³/min
5000W+
12–15 m³/min (plus 20% redundancy for multi-machine setups)

Step 2: Prioritize Variable Frequency Models

VFC units are a must for intermittent laser cutting (e.g., batch production) — they use 30% less energy during idle periods.

Step 3: Choose Dew Point Based on Materials

Standard (-25℃): For carbon steel, mild steel

High-performance (-40℃): For stainless steel, aluminum, copper

Step 4: Check Noise & Footprint

Ensure noise ≤ 75dB (complies with OSHA/EU noise standards)

Measure your workshop space: Most 30kW units are 1200×800×1500mm (fit through standard doorways)

5. Why Choose Our Four-in-One Screw Air Compressor?

Our laser-cutting-specific four-in-one units are built for industrial durability:

CE/ISO 9001 certified: Meets global quality standards

24/7 after-sales support: On-site service within 48 hours (for major regions)

Customizable options: Add oil-water separators, remote monitoring, or high-pressure tanks

Whether you’re a small shop with 1 laser cutter or a large factory with 10+ machines, we have a solution to boost your efficiency.

Contact Us Today to get a free air source audit for your laser cutting workshop. Let’s help you cut costs, improve quality, and scale production.

Refrigerated vs. Desiccant Air Compressor Dryer: What's the Difference?

Laser Power	Recommended Flow Rate
1000–2000W	5–8 m³/min
3000–5000W	8–12 m³/min
5000W+	12–15 m³/min (plus 20% redundancy for multi-machine setups)
