230V/460V 3Phase Rotary Screw Air Compressor 123CFM 30HP/22KW 125PSI for Indurtrial

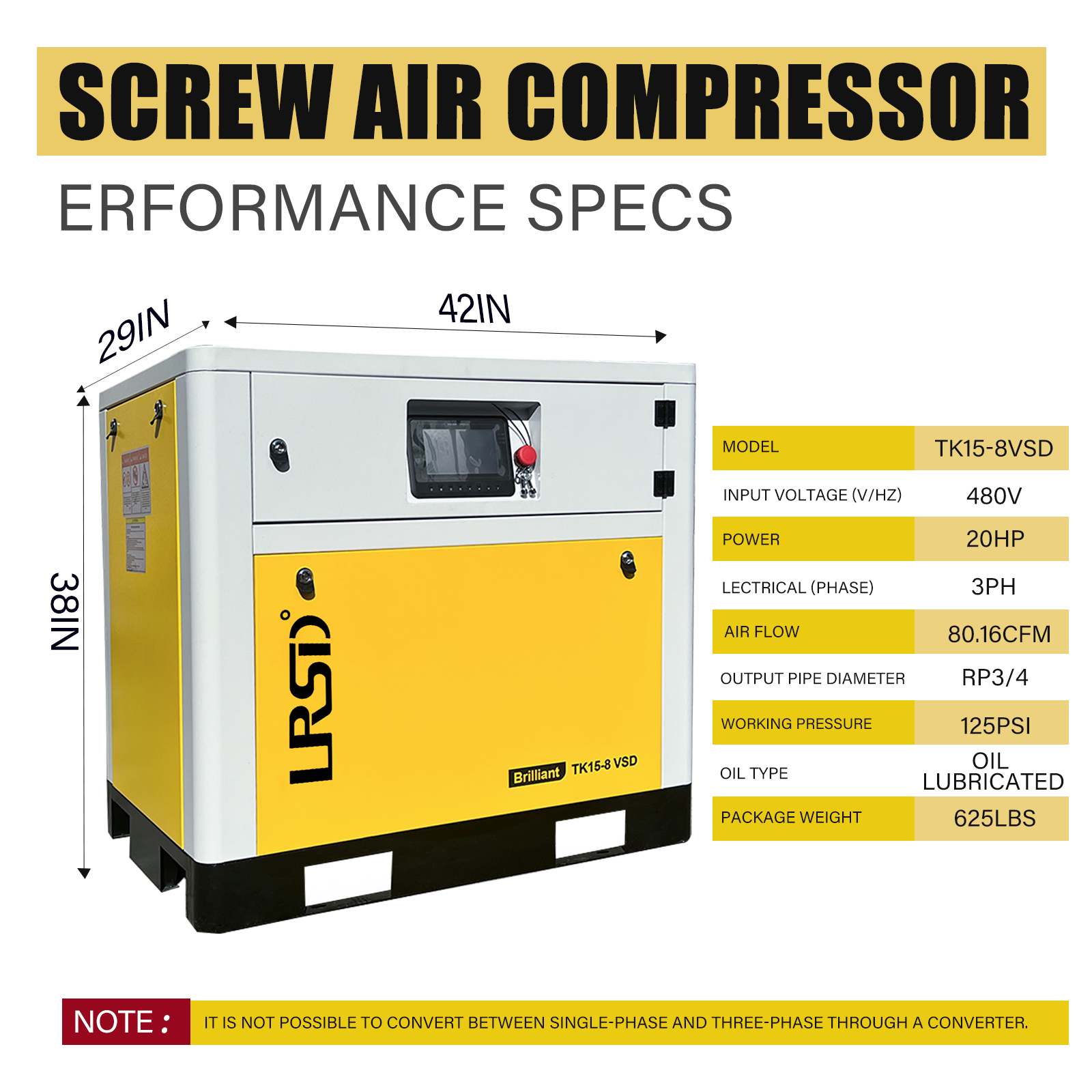

Parameter	Value/Description
Model	TK15-8VSD
Voltage	480V
Power (Q)	20HP
Electrical (Phase)	3PH
Airflow	80.16CFM

Inquire Now Next Product

Product Details

Technical Parmeters

Catalogue Download

LRSD 11kW 8bar Rotary Screw Air Compressor

High Efficiency | Energy Saving | Stable & Durable

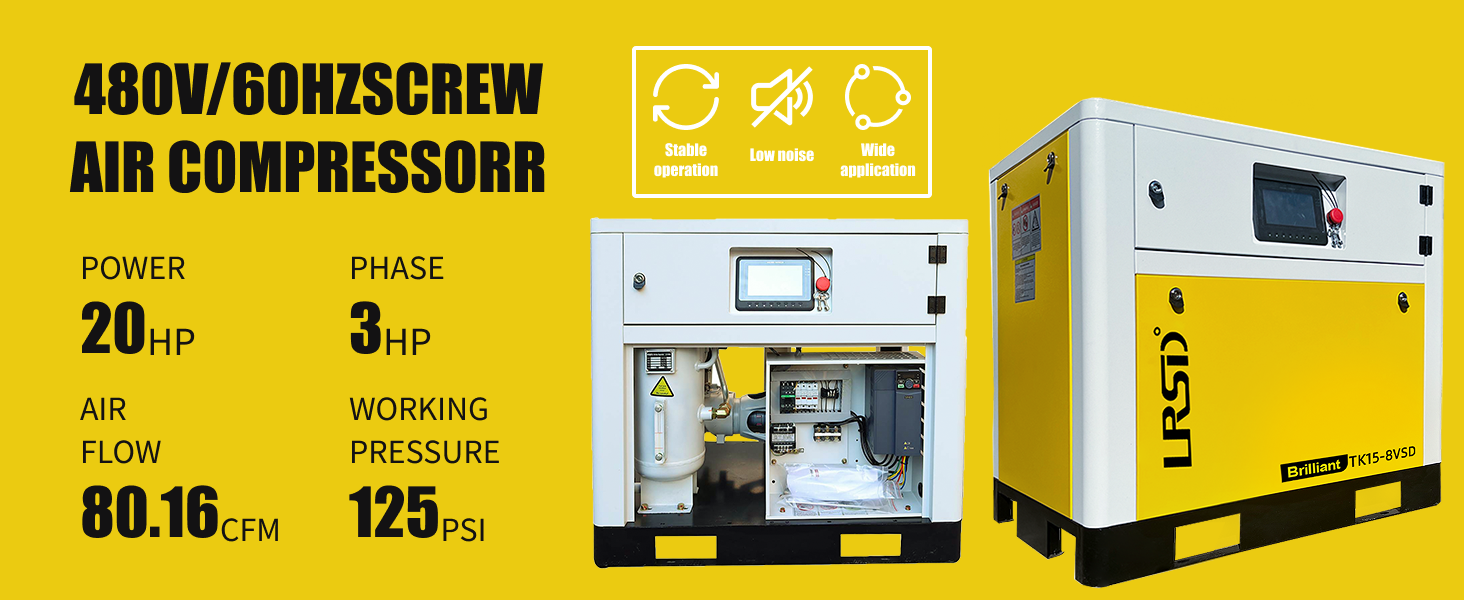

Frame 102.png

1. Superior Compressor System Design

High-Efficiency Screw Air Unit
✓ Improved airtightness design
✓ 15% energy savings compared to conventional air compressors

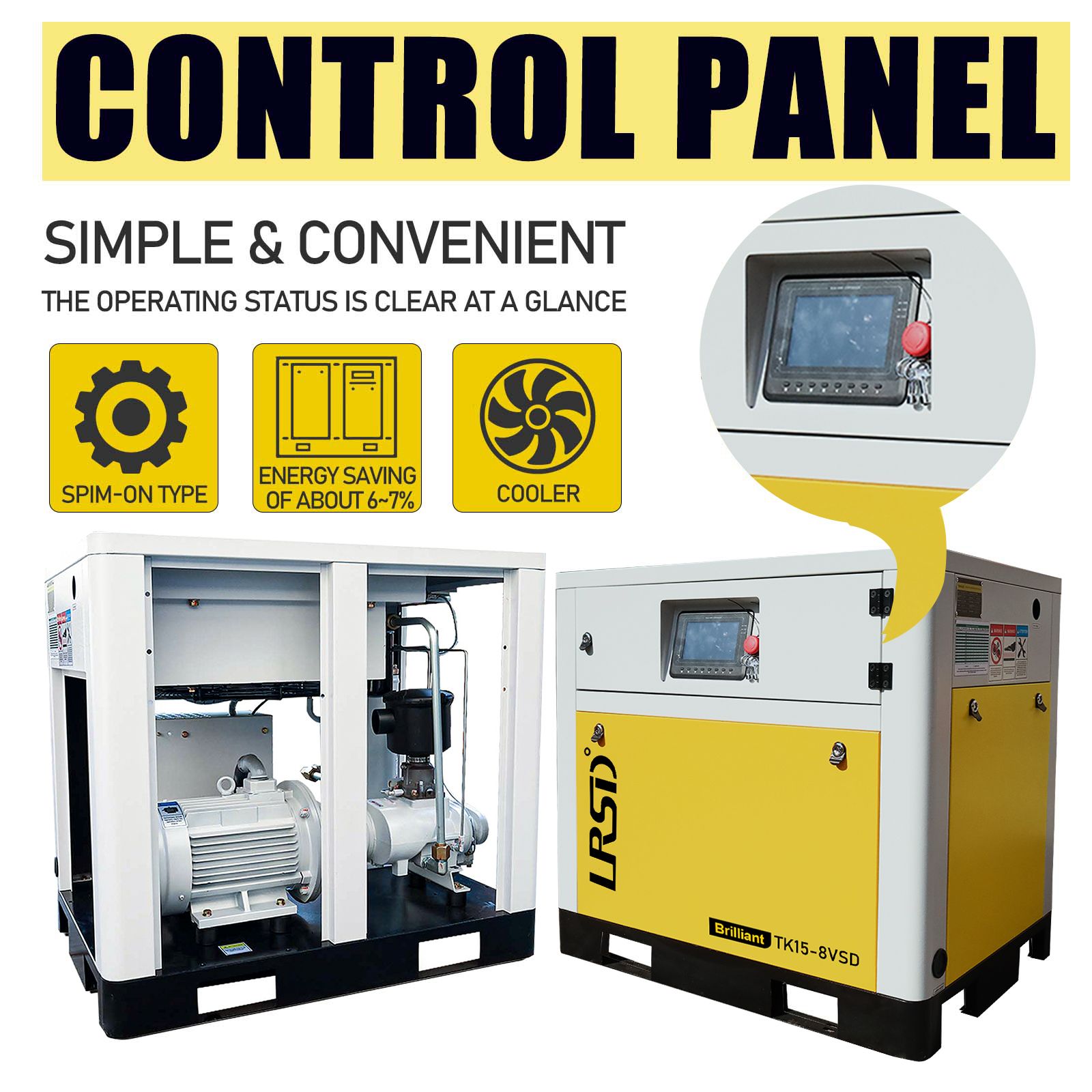

Intelligent Control System
✓ Built-in PLC controller with real-time monitoring (pressure/temperature/load)
✓ Supports remote control via mobile app
✓ Automatic shutdown upon failure detection

Low Noise Optimization
✓ ≤68dB(A) operation noise level
✓ Meets industrial noise standards
✓ Suitable for workshops and laboratories

2. Cost-Effective Solution

Permanent Magnet VSD (Optional)
✓ Over 30% energy savings vs. fixed-speed models
✓ Adjustable exhaust volume on demand
✓ Reduced no-load losses

Premium Core Components
✓ SKF/FAG heavy-duty bearings
✓ Imported high-quality seals
✓ 30,000+ hours service life

Space-Saving Design
✓ Compact integrated structure
✓ Ideal for space-constrained facilities
✓ Mobile application compatible

画板 6 拷贝 3.png

3. Versatile Applications

Stable 8bar Performance
✓ Laser cutting systems
✓ CNC machining centers
✓ Injection molding machines
✓ Industrial spray painting

Rugged Construction
✓ IP55 protection rating
✓ Dust-proof and water-resistant
✓ Suitable for harsh environments

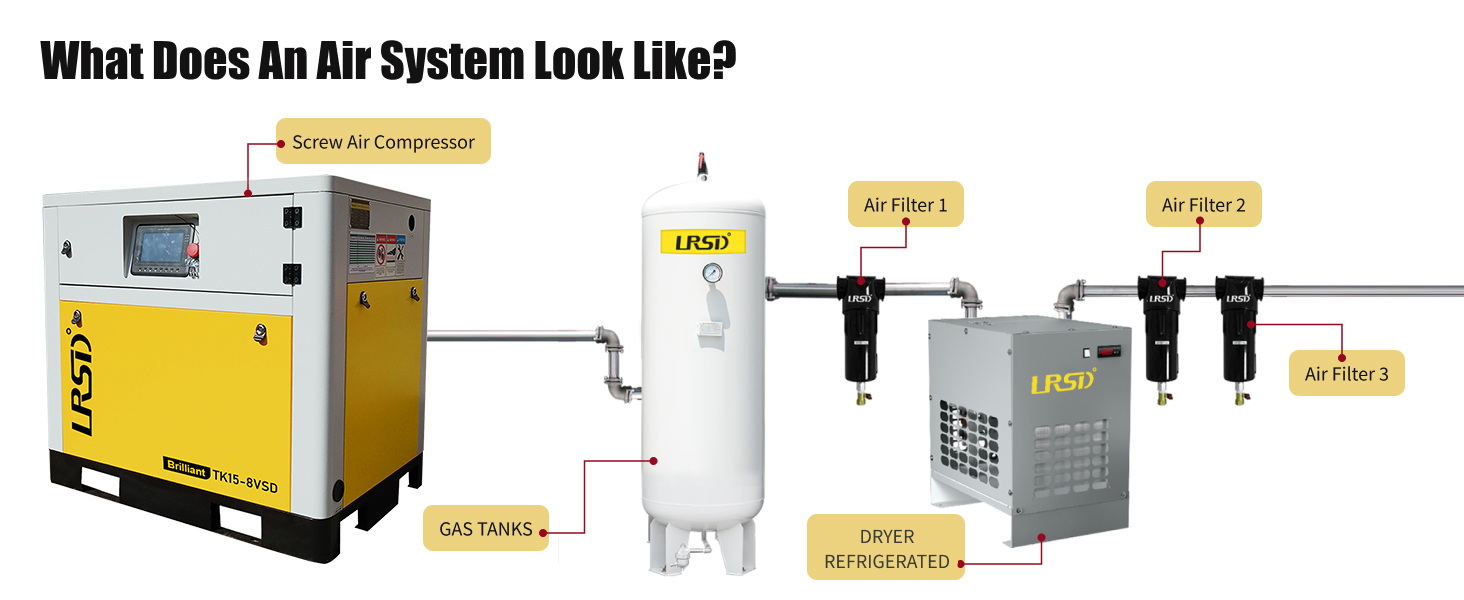

Expandable System
✓ Compatible with refrigerated dryers
✓ Works with air storage tanks
✓ Supports filtration systems

4. Reliable After-Sales Support

Global Service Network
✓ 24/7 technical consultation
✓ Rapid response service team

Quality Assurance
✓ 2-year comprehensive warranty
✓ Extended coverage available

Certified Performance
✓ ISO 9001 certified manufacturing
✓ CE compliant design

Model	Nominal Power		Working Pressure		Free Air Delivery		Weight	Noise Level	Dimensions (LxWxH)			Outlet Size
60Hz	KW	HP	bar	psi	m3/min	cfm	LB	db(A)	（IN）
TK4-8	4	5.5	8	116	0.61	21.54	399.0	65	29.5	29.5	31.5	PR1/2
TK4-10	4	5.5	10	145	0.51	18.01	399.0	65	29.5	29.5	31.5	PR1/2
TK5.5-8	5.5	7.5	8	116	0.80	28.25	399.0	65	29.5	29.5	31.5	PR1/2
TK5.5-10	5.5	7.5	10	145	0.69	24.37	399.0	65	29.5	29.5	31.5	PR1/2
TK5.5-13	5.5	7.5	13	189	0.60	21.19	399.0	65	29.5	29.5	31.5	PR1/2
TK7.5-8	7.5	10	8	116	1.06	37.43	531.3	68	37.4	25.6	34.6	PR1/2
TK7.5-10	7.5	10	10	145	0.96	33.90	531.3	68	37.4	25.6	34.6	PR1/2
TK7.5-13	7.5	10	13	189	0.74	26.13	531.3	68	37.4	25.6	34.6	PR1/2
TK11-8	11	15	8	116	1.87	66.04	727.5	68	44.5	29.5	38.6	PR3/4
TK11-10	11	15	10	145	1.85	65.33	727.5	68	44.5	29.5	38.6	PR3/4
TK11-13	11	15	13	189	0.97	34.26	727.5	68	44.5	29.5	38.6	PR3/4
TK15-8	15	20	8	116	2.27	80.16	848.8	68	44.5	29.5	38.6	PR3/4
TK15-10	15	20	10	145	2.21	78.05	848.8	68	44.5	29.5	38.6	PR3/4
TK15-13	15	20	13	189	1.82	64.27	848.8	68	44.5	29.5	38.6	PR3/4
TK18.5-8	18.5	25	8	116	2.83	99.94	1034.0	70	53.1	33.5	44.9	PR1
TK18.5-10	18.5	25	10	145	2.80	98.88	1034.0	70	53.1	33.5	44.9	PR1
TK18.5-13	18.5	25	13	189	2.18	76.99	1034.0	70	53.1	33.5	44.9	PR1
TK22-8	22	30	8	116	3.48	122.90	1086.9	70	53.1	33.5	44.9	PR1
TK22-10	22	30	10	145	3.45	121.84	1086.9	70	53.1	33.5	44.9	PR1
TK22-13	22	30	13	189	2.76	97.47	1086.9	70	53.1	33.5	44.9	PR1
TK30-8	30	40	8	116	4.21	148.67	1170.7	72	53.1	33.5	44.9	PR1
TK30-10	30	40	10	145	4.17	147.26	1170.7	72	53.1	33.5	44.9	PR1
TK30-13	30	40	13	189	3.39	119.72	1170.7	72	53.1	33.5	44.9	PR1
TK37-8	37	50	8	116	5.85	206.59	1505.8	72	58.3	39.4	47.2	PR1-1/2
TK37-10	37	50	10	145	5.80	204.83	1505.8	72	58.3	39.4	47.2	PR1-1/2
TK37-13	37	50	13	189	4.11	145.14	1505.8	72	58.3	39.4	47.2	PR1-1/2

AIR COMPRESSOR MAINTENANCE

The air compressor shouldbe placed in a place withclean air and good ventilation.

The air compressor should be placedhorizontally, with the belt side facingthe wall, and the maintenancespaceshould be reserved.

Before repairing and disassemblingthe air compressor, please tum offthe power supply and dischargethe air in the air seam.

When wiring, check whether thefan rotation direction is consistentwith the arrow direction.

ENERGY SAVING THCHNOLOGY

Power saving of 17000o kWh per month

The starting power of the original system is 555kw,and the starting power of the new system is 320kw.

Power saving of 17000o kWh per month

Power saving of 54000 kWh per month

The starting power of the original system is 240kW,and the starting power of the new system is 132kw.

Power saving of 54000 kWh per month

Power saving of 86000 kWh per month

The starting power of the original system is 446kW,and the starting power of the new system is 325kW.

Power saving of 86000 kWh per month

Power saving of 260000 kWh per month

The starting power of the original system is 690kw,and the starting power of the new system is 420kw.

Power saving of 260000 kWh per month

Power saving of 167000 kWh per month

The starting power of the original system is 732kW,and the starting power of the new system is 50okw.

Power saving of 167000 kWh per month

Power saving of 79000 kWh per month

The starting power of the original system is 430kw,and the starting power of the new system is 320kw.

Power saving of 79000 kWh per month
