Air compressor maintenance matters

—Important Reminder—

Before maintenance, disconnect the power supply. Open the drain valve on the air tank to drain the air. Check that the pressure gauge on the oil and gas tank is clear. Allow the machine to cool for at least half an hour to avoid burns. Ensure that there is no power or pressure before operating again!

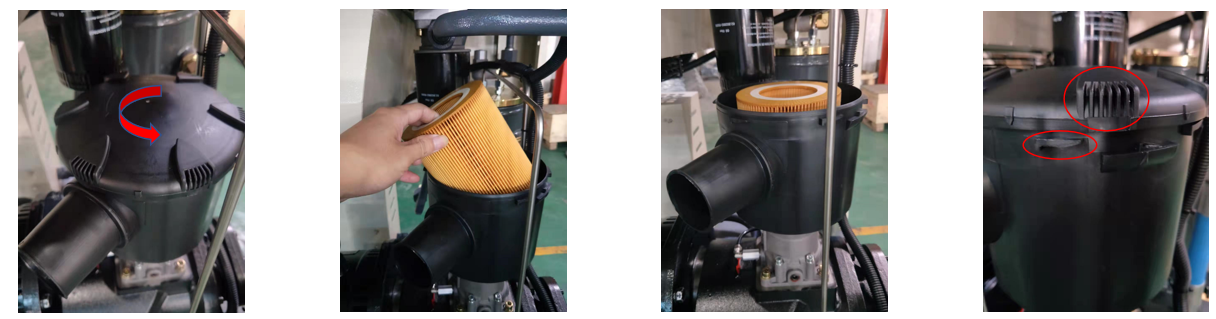

—Replacing the Air Filter—

1. The first air filter maintenance interval is 500 hours, and 2000 hours thereafter.

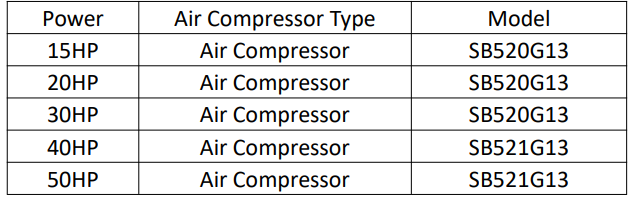

2. Air filter element model:

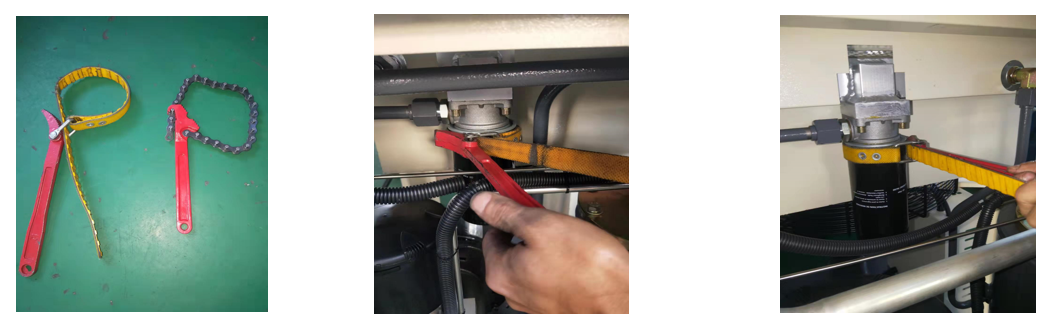

—Replacing the Oil Filter—

1. The air filter should be serviced for the first time after 500 hours and every 2000 hours thereafter.

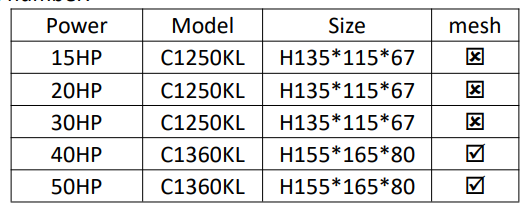

2. Oil filter model:

3. Instructions:

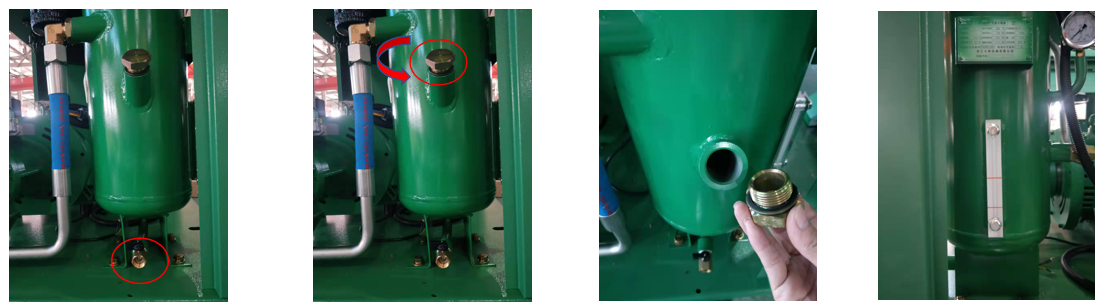

—Engine Oil Change—

1. Engine oil maintenance interval is 4000 hours.

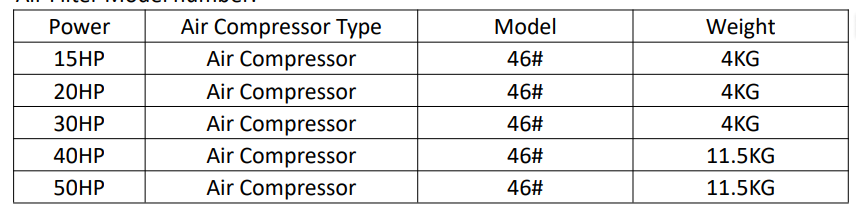

2. Engine oil type:

3. Operation method:

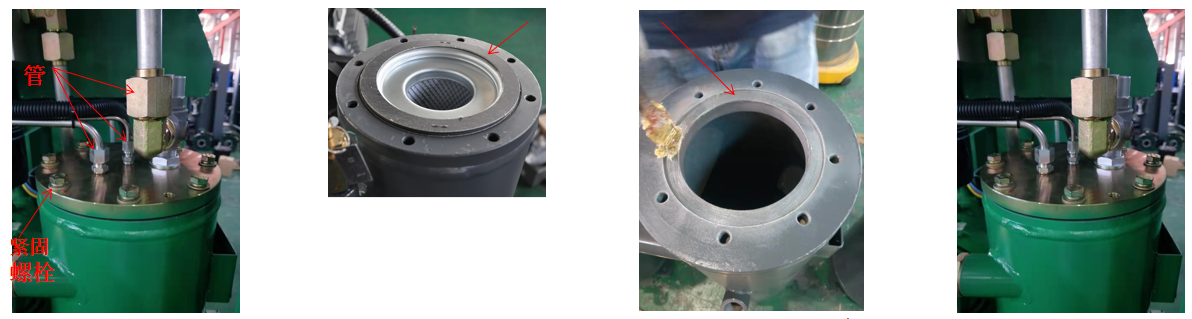

—Replacing the Oil Separator Element—

1. The oil separator element maintenance period is 2000 hours.

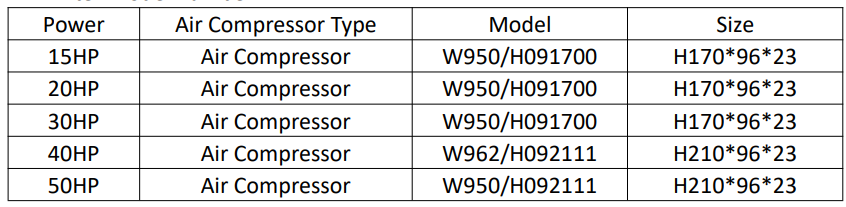

2. Oil Separator Element Model:

3. Operation Instructions:
